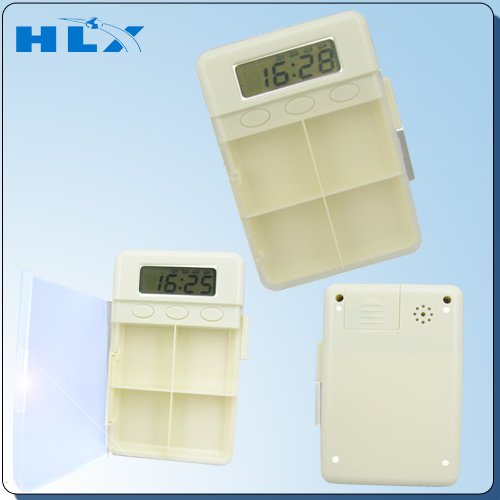

Four standard space store medical pills, the key are in inner
To set four groups of alarms one time, and also set any one group alarm
Operation is easy via 3key, free to select 12 or 24 Hour Model dispaly
the LCD screen is big & clear
" Di Di " the sound reminder time reaches 1 minute
Battery: 1×CR2032 button cell (included)
Product Specifications
A.Cell's store and installment
like (1) shows, when does not use this product, the cell should be put in the cell spare slots. Before the use, please first install the battery in the cell slot.
B.Clock setting
a. holds down “SET” the key 3 seconds, “12HR” flash on the LCD, if
needs “24HR” Model, press “ADJ” key, “24HR”flash, if you confirme the model, please press “SET” the key 1 time, then “hour” the position will glitter, press “ADJ” key and adjust, .If you confirme that, please press " SET” the key, then “minute” the position will glitter, then press “ADJ” the key and adjust minute digital, the last to press”SET” key to confirm the time.The time setting is finished
C. Alarm setting
a. presses “MODE” key, to adjust the alarm, if need one
group of alarm, can choose any one of four groups to operate.
b To press “SET” key, “Hour” position flash, press" ADJ” key and adjust number, then press “SET” key to confirm, simultaneously “minute”position flash, press“ADJ”key and adjust minute number, then press “SET” key to confirm alarm time.One group alarm time is successed to set. Next groups of alarm as above steps to set.[three (2)]
c. other alarm setting, press “MODE”key, operation method as a, b.
D. Cancels alarm
To press “MODE” key, select the group of alarm which needs to adjust,
presses “ADJ” key, the LCD display “--: --”, it is indicated that the alarm is cancelled.Go on pressing” MODE”key, set as above steps for cancel alarm
E Attention
a. Turn on the reminder crystal lid, please note buckle on right position, and the lid can be opened the angle is only 100 degrees. In order to avoid damages, not to pull it outside 100 degrees.
b. this product is made of ABS material, please do not directly put the expose medicine pills in the space.
